SPAN, RSPAN, & ERSPAN

SPAN (Switched Port Analyzer)

SPAN is a Cisco feature used for traffic mirroring. It copies Layer 2 packets from source interfaces or VLANs and forwards them to a destination port for analysis—commonly by a packet sniffer or analyzer tool.

SPAN is commonly used for:

• Troubleshooting network issues
• Packet capture for security analysis
• Application or performance monitoring

There are two types of SPAN:

• Local SPAN – source and destination are on the same switch
• Remote SPAN (RSPAN) – source and destination can be on different switches, using a special RSPAN VLAN

Local SPAN

Local SPAN mirrors traffic within the same device (or stack).

Configuration

Define the source interface or VLAN, and then specify the destination interface:

monitor session 1 source interface GigabitEthernet1/0/1 [both | rx | tx]
monitor session 1 source vlan 10
monitor session 1 destination interface GigabitEthernet1/0/10

Remote SPAN (RSPAN)

RSPAN allows traffic from a source port or VLAN on one switch to be mirrored to a destination port on another switch using a remote-span VLAN.

Configurations

Step 1: Configure the RSPAN VLAN

All switches along the path must be aware of this VLAN and mark it as a remote-span.

vlan 100
 remote-span

Step 2: Configure the Source Session

monitor session 1 source interface GigabitEthernet1/0/1
monitor session 1 destination remote vlan 100

This mirrors traffic to the remote-span VLAN.

Step 3: Configure the Destination Session

On the remote switch where the destination port exists:

monitor session 2 source remote vlan 100
monitor session 2 destination interface GigabitEthernet1/0/24

SPAN Additional Configs

VLAN Filtering (SPAN Source Filter)

Use this to limit traffic mirrored from a trunk port or VLAN source:

monitor session 1 filter vlan 10

Only traffic in VLAN 10 is mirrored.

IP/MAC/IPv6 Filtering (FSPAN/FRSPAN)

Used for fine-grained traffic selection:

monitor session 1 filter ip access-group 101

The access-list can match specific source/destination IPs or MACs.

Destination Encapsulation

The destination interface can replicate the encapsulation of the source:

monitor session 1 destination interface GigabitEthernet1/0/10 encapsulation replicate

• Mirrored packets retain their 802.1Q tags.
• Your analyzer sees whether a packet came from VLAN 10 or 20.

Or configure how inbound (ingress) packets are handled:

monitor session 1 destination interface GigabitEthernet1/0/10 ingress vlan 6
monitor session 1 destination interface GigabitEthernet1/0/10 ingress dot1q vlan 6

Command Variant	Accepts Tagged?	Accepts Untagged?	Untagged VLAN Assignment
ingress dot1q vlan 6	Yes	Yes	6
ingress vlan 6 untagged vlan 6	No	Yes	6

Encapsulated Remote SPAN (ERSPAN)

ERSPAN extends RSPAN by encapsulating mirrored traffic in GRE packets and sending it across Layer 3 networks. This allows packet monitoring across IP networks, not just within L2 broadcast domains.

Unlike SPAN or RSPAN, ERSPAN requires a source IP, destination IP, and ERSPAN session ID.

Use Cases

• Monitor traffic from branch routers to a centralized data center.
• Capture traffic from remote devices across routed paths.
• Integrate with cloud-based or virtualized traffic analyzers.

Configuration on IOS-XE

The source router must have a route to the ip address aka the collector.

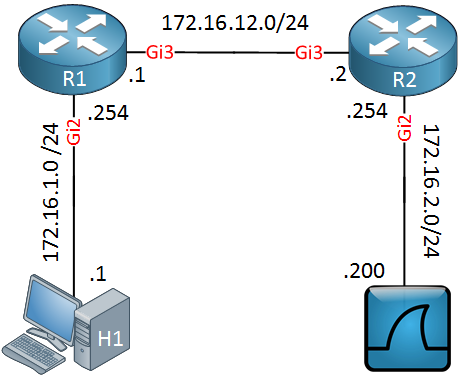

Guide from Network Lessons.

Define the Source Session

! R1
monitor session 1 type erspan-source
  no shutdown
  source interface GigabitEthernet 2
  destination
    erspan-id 100
    ip address 172.16.12.2
    origin ip address 172.16.12.1

• source interface: Interface you want to mirror.
• erspan-id: Unique identifier for the ERSPAN session.
• ip address: IP of the ERSPAN destination (collector, eg. Wireshark host).
• origin ip: exit IP of the ERSPAN source (this device).

The router will encapsulate mirrored packets in GRE with ERSPAN headers and send them to the collector.

Define the Destination Session

! R2
monitor session 1 type erspan-destination
  no shutdown
  destination interface GigabitEthernet 2
  source
    erspan-id 100
    ip address 172.16.12.2

The IP address entered must be matching the IP configured in the source session, pointing to the Wireshark or collector host.

Verification

show monitor session 1

Reference

Cisco SPAN/RSPAN Whitepaper
